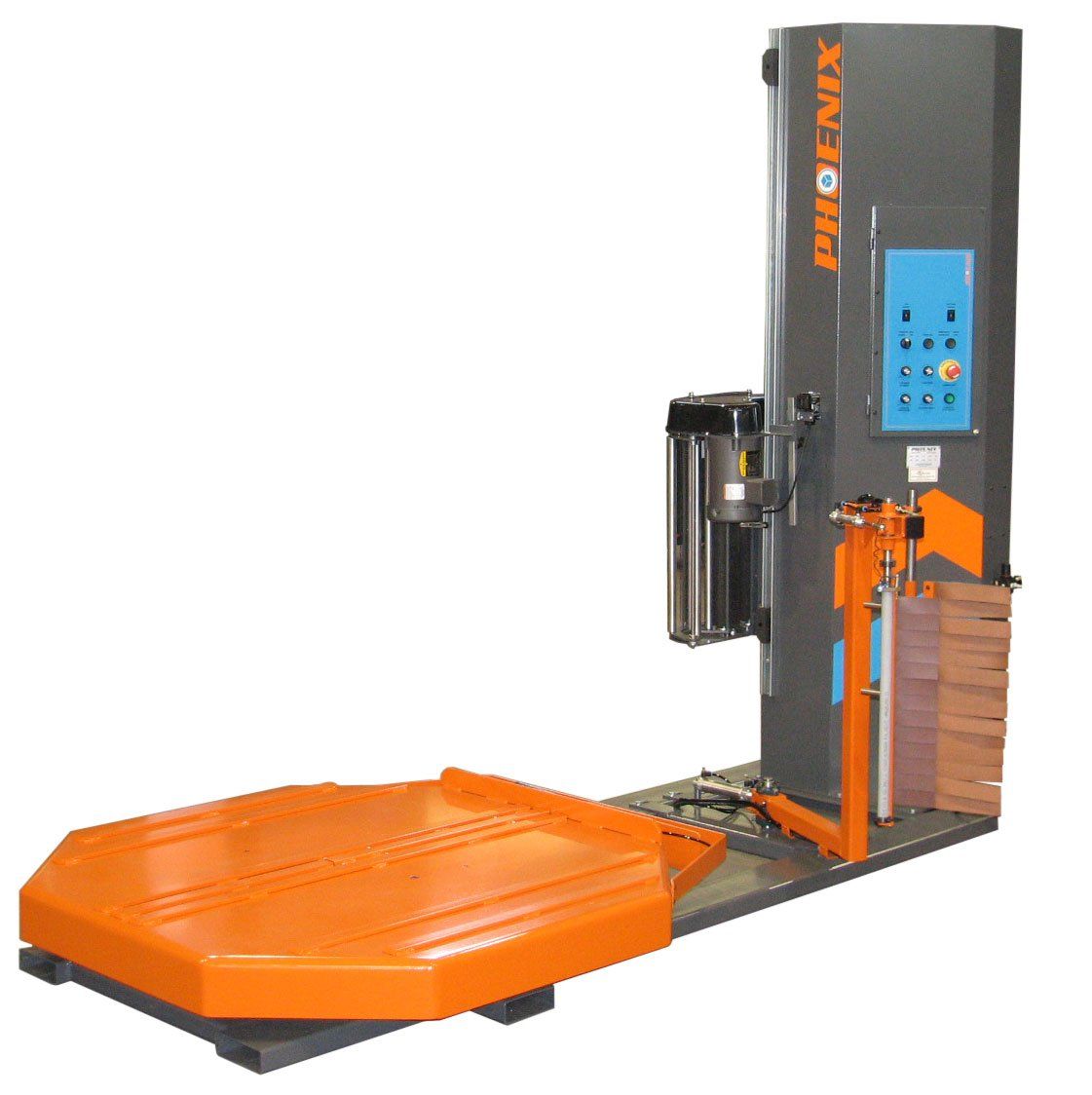

PHP 2150: High Profile Stretch Wrapper

Most Popular and the Workhorse of the High Profile Family!

As part of the high profile family of wrappers designed for use with pallet jacks, the PHP-2150 is the most popular and the workhorse of the High profile family.


Customizable to fit specific stretch wrapping needs, this wrapper is used from wrapping chips to bricks. It provides consistent, repeatable stretch wrapping performance. Extremely operator friendly, the one touch operator start and simple film roll changing makes this easy to use for all employees. stretch wrapper wraps even the toughest loads with very little stretch film. Fast, reliable and built like a tank the PHP-2150 is safe to use and is covered by a full 5 year full coverage warranty.

Flexible & Powerful Operator Controls


  • Easy to use panel with operator friendly switches and knobs
  • 3 Pre-programmable wrap cycles for different load types
  • Variable speed control to match load stability

Easy Loading Powered Prestretch

Film Carriage


  • Reduce film costs with 245% Prestretch (10” off the roll = 34” on load)
  • Phoenix “Clearview” door lets operator see carriage operating
  • Dual stage door lock with electrical interlock for operator safety
  • Pull through film loading takes just a few seconds
  • Chain drive prestretch for rugged construction.

Tilting Film Carriage

  • Film holder pivots down to allow the film to slid on with ease.
  • Linear feed-back control with no moving parts using load cell technology
  • Automatic Shut-off of drive rollers with safety door monitoring switch

Built Rugged to Provide Years of Service

  • 7 Roller bearing casters for smooth, quiet operation
  • Steel construction withstands careless forklifts
  • Heavy gauge turntable handles heavy loads
  • Two-part epoxy paint resists wear

Larger Load Capacity Than

Competitive Models


  • 48” Octagonal turntable for 56”×56” loads (80” Load Diagonal)
  • #50 ANSI direct chain drive for reliable operation
  • Roller bearing turntable supports for 5,000 lb. capacity
  • Easy access grease fitting for support bearings
  • Built in fork tubes for easy transport from front and back

Production Capacity:


45 loads per hour


Maximum Load Weight:



5000 lbs


Maximum Load Size:


56x56


Frame Type:


High Profile


Warranty:          5 Year Warranty
